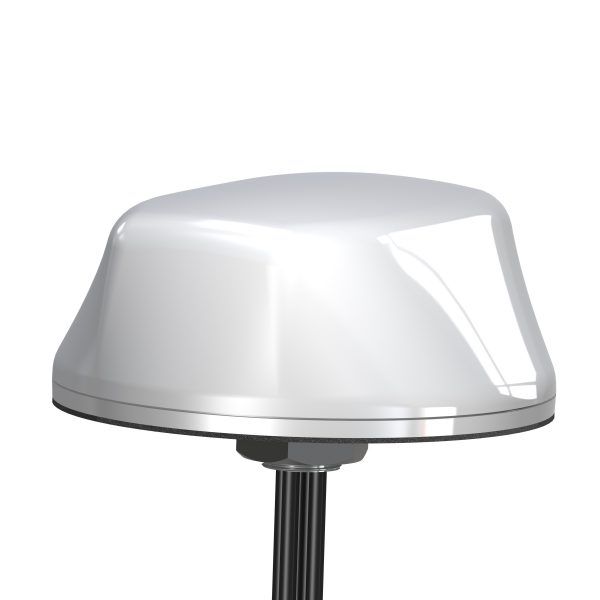

LTMG508 MIMO Wide-band 5G Antenna

The 5-cable LTMG508 (2x Global 5G LTE, 2x WiFi, GNSS) antennas include two Global 5G LTE antennas, two WiFi antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz.  Furthermore, it covers all Cellular bands, worldwide.  In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

Measuring 140mm in diameter with a low profile of 60.4mm, the LTMG508 series antennas take up significantly less space than multiple antennas.

The antenna is available in either surface-mount or mag-mount models. Specify MLTMG508 for the mag-mount model of the LTMG508 (2x Global 5G LTE, 2x WiFi, GNSS).
