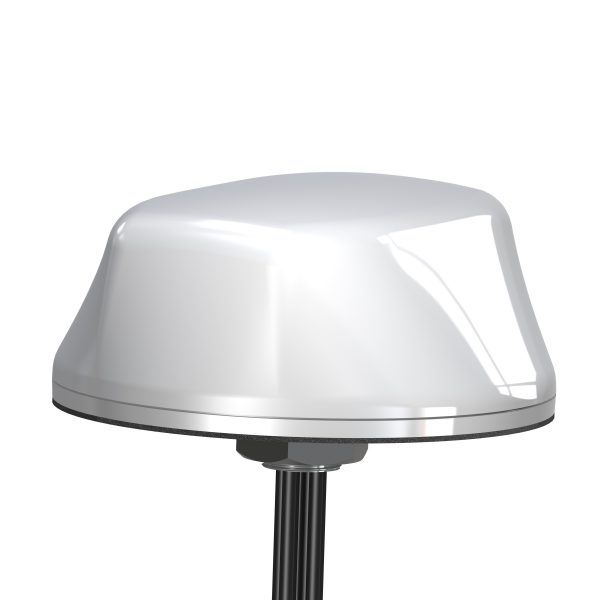

LTMWG900 Series Dual Carrier MIMO Multiband Antenna

The LTMWG944 (4x Sub-6 5G Cellular, 4x WiFi 6E, GNSS) is a 9-cable antenna covering Sub-six and is 5G Ready. It is backward compatible for 4G LTE. This antenna has with four Cellular elements, four WiFi 6E elements and 1x GNSS element. With 9-elements, it provides a good match for the dual carrier modems. There are two pairs of LTE MIMO elements, one pair for each carrier for the LTMWG944.  Furthermore, these fleet management systems offer Cellular carrier back-up. Also, the 4x WiFi elements providing faster through-put for the advanced WiFi processors.

The LTMWG944 covers all Global Cellular & LTE frequencies and is also Private LTE and 5-G ready. Specifically, the Cellular/LTE elements that cover: 617-960 & 1710-6000 MHz. In addition, the WiFi6E elements cover 2.4-2.5 GHz, 4.9-7.125 GHz.

The LTMWG944 Measures 140mm in diameter with a low profile of 60.4mm it takes up significantly less space than multiple antennas.

Specify LTMW944 for an antenna configured with a GPS configuration.

The LTM Series was the first of our Multiband Antenna Series to accommodate two Cellular/LTE elements. Check out our other 626 Antennas or visit our eStore to customize an LTMWG900 Series like this LTMWG944 (4x Sub-6 5G Cellular, 4x WiFi 6E, GNSS).

More Configurations are Available in the LTMWG 900 Series with less WiFi elements.
