22 Jul 2021

MXFG508 MIMO Wide-band 5G MaxFin Antenna

The 5-cable  MXFG508 “MaxFin” (2x Global 5G LTE, 2x WiFi, GNSS) antenna include two Global 5G LTE antennas, two WiFi antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz.  Furthermore, it covers all Cellular bands, worldwide.

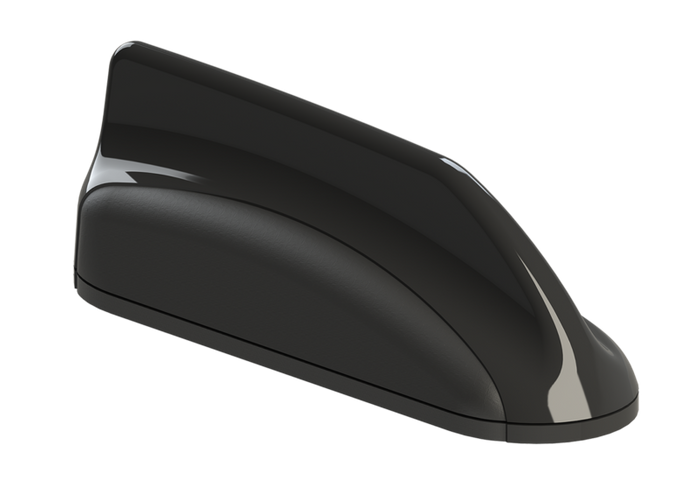

The antenna elements all fit in this slim tapered radome that mesaures only 19cm long x 5.7cm wide by 6.4cm tall. The antenna housing contains a stylish combination of matte & polished finish, providing a sleek, high-tech look on the vehicle.

A mag-mount version of the MXFG508 is available as: MMXFG508 or for the GPS option use model # MFX508.
