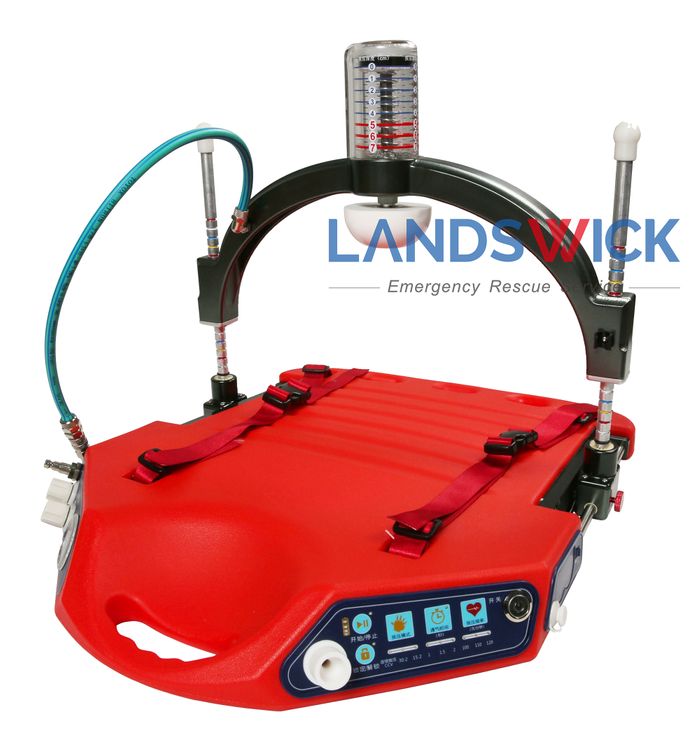

Pneumatic type cardiopulmonary resuscitator device

1.        Pneumatic electric

2.        Compression frequency: 100 /min,110/min,120/min

3.        Compression depth: 0~7cm,continuous adjustable.

4.        Ventilation: 0~1500ml, adjustable.

5.        Compression release rate: 1: 1(50%: 50%).

6.        Automatic continuous compression ventilation modes: 30: 2, 15: 2, continuous compression mode,CCV.

7.        Ventilation time: 1s,1.5s,2s, adjustable.

8.        Rated pressure input?0.35MPa.

9.        When stress protection?0.7 MPa±0.1 MPa, pressure relief valve open.

10.      When airway pressure?50cmH2O, automatic relief alarms.

11.      Fixed legs of the device have scale, can show the thickness of patients' chest

12.      Fixed legs of device can move up and down, back and front, when confirm the compression position, you don't need to move the patients.

13.      The part of compressor contacted to body is made of polymer insulation material, can use defibrillator meanwhile.

14.      Pressure scope of Oxygen drive: 345Kpa~600Kpa.

15.      Normal working temperature: -40ºC~40ºC

16.      Working voltage: DC 12V or 100-240V.

17.      Input power of Mechanic CPR Resuscitator: 30W.

18.      IP Rating: IPX4

19.      Electric shock protection type: ?-BF

20.      N.W.?6.5kg.

21.      Volume?60cm×46cm×7cm.

22.      Continued working time of battery?8hrs,charging period?4hrs; When the battery power is not enough,it has automatic alarm function.
