rpr IOT T01 Temperature Node
)
)

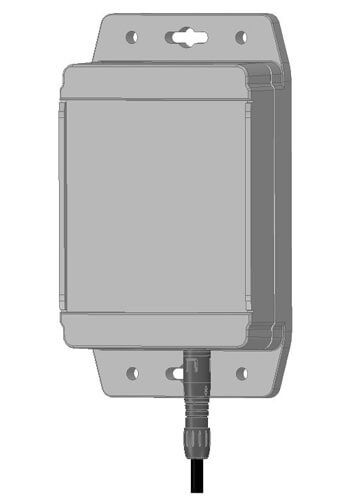

The rpr-IoT-T01 is a battery powered temperature sensor node that communicates using long range radio compatible with LoRaWAN and the Things Network. The low power electronics are housed in a rugged IP67 enclosure suitable for outdoor and industrial applications. A sealed connector is used for the temperature probe allowing a number of probe options. Data is stored on The RPR WeatherFile.com cloud for long-term storage and access. Readings can also be accessed by or sent in real time to your IoT dashboard of choice.

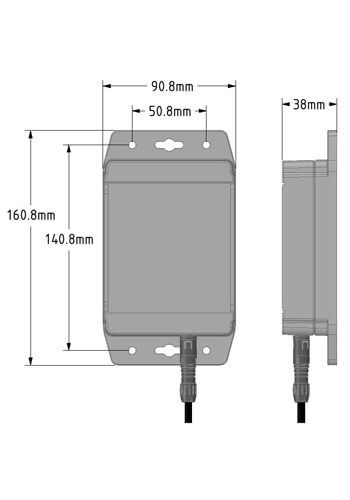

Specification Physical Enclosure dimensions including flanges but excluding sensor 160.8mm x 90.8mm x 38 mm Mounting holes 4 off 5 mm dia. 140.8 mm x 50.8 mm Mounting key holes 2 off 8.5 mm dia. 4.6 mm slot, 140.8 spacing Flange thickness 6.5 mm Enclosure material Polycarbonate, Light Gray (RAL 7035) Enclosure flammability rating UL94 5VA @ 3mm Weight 245g Temperature Sensor Sensor type DS18B20 digital Sensor Accuracy ±0.5°C Accuracy from -10°C to +85°C ±1°C Accuracy from -30°C to +100°C Resolution 0.1°C Sensor temperature range -55°C to +125°C Sensor Identification Each sensor has a unique 64-bit serial code Time constant TBD Sample rate 1 per second to 1 per 12 hours Wireless/network Connectivity Frequency band 863-870 MHz LoRa Channel EU868 Networking Protocol LoRaWAN, Class A Aerial Internal Meandering Monopole circuit board mounted Uplink Message Interval Selectable between 1 minute and 1 day Range Up to 10km Line of sight dependent on environment Power Battery type A size Lithium Thionyl Chloride (LiSOCl2) Nominal Battery Capacity 4000mAh Nominal Battery Voltage 3.6V Environmental Temperature range Operating: -10°C to +60°C, Storage: -40°C to +70°C Relative Humidity 0% to 100% Enclosure protection IP67 Compliance UKCA, CE The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
