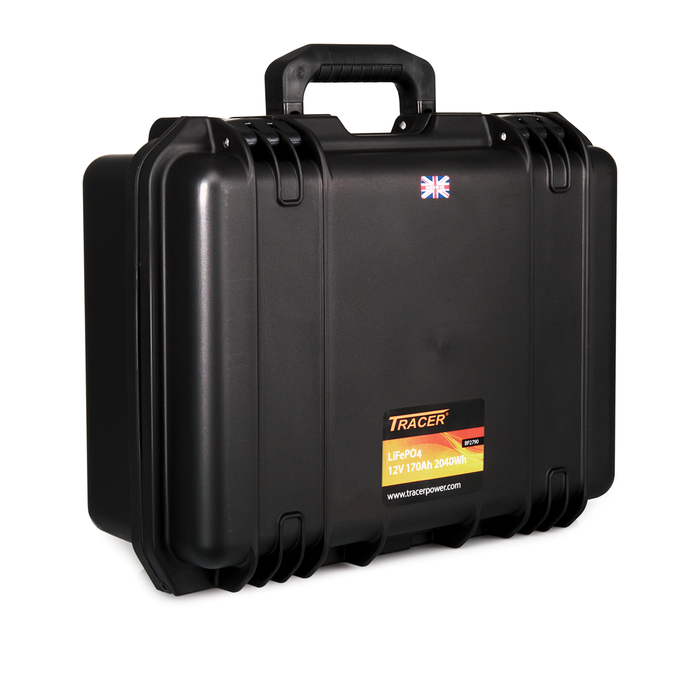

Tracer Power Lithium Iron Phosphate Battery Packs (LiFePO4)

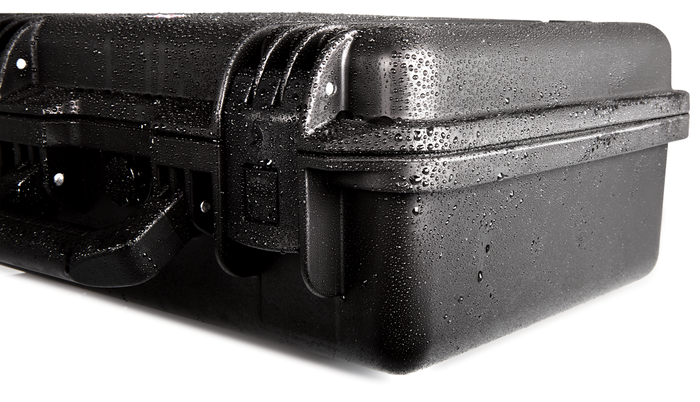

A robust IP67 Waterproof standard case has been pre wired. Built using Amphenol Circular MIL Spec Connector system offering
full IP67 protection. The batteries use prismatic cells that create the lightest weight construction. Supplied with built-in internal LED Fuel gauge and charger.
Key features:
- PeliTM Case
- Built-in internal LED Fuel gauge
- Wired and ready to use

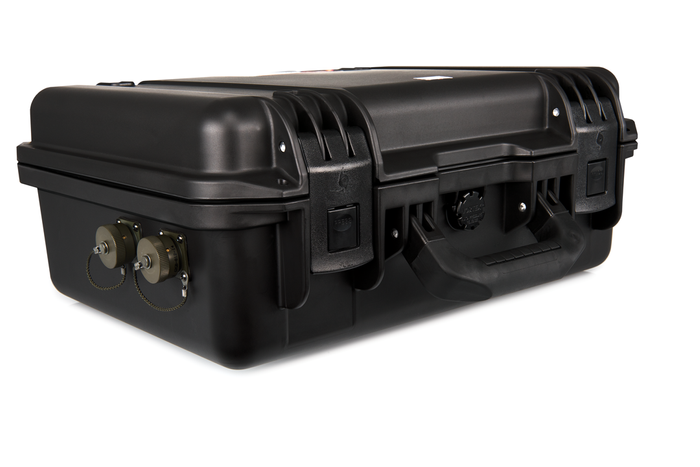

- Two Amphenol sockets fitted to case
- Longer lasting discharge
- Faster recharge time
- IP67 Waterproof standard
- Up to 30A output, by using TR8185
- Overcharge and short circuit protected
- Temperature range (charging): 0°C – 40°C
- Temperature range (discharging): – 10°C – 60°C
Safety features:
Integrated Electronic ‘Battery Management System’ (BMS) provides the following protection:
- Overcharge & over-discharge protection
- Thermal protection
- Over current protection
- Short circuit protection
Certification
- CE Approved
- UN 38.3 Certified
- RoHS Compliant
