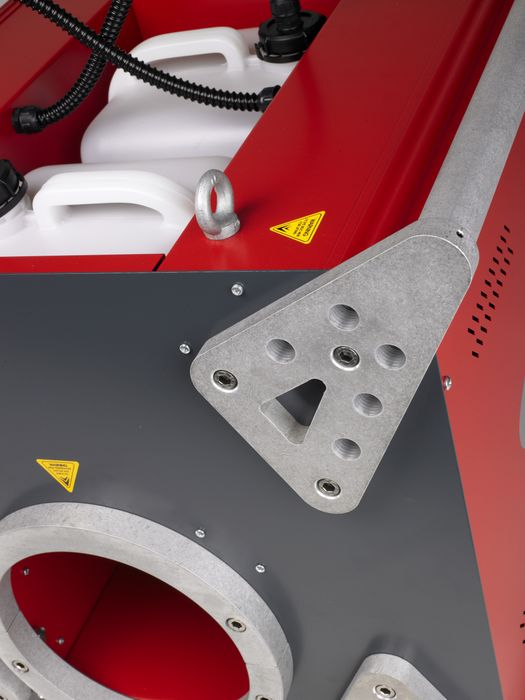

Trainer X-Steam Smoke Simulation Machine

Trainer X-Steam Smoke Simulation Machine
Trainer X-Steam Smoke Simulation Machine
  • Onboard DMX (Behind Panel)
  • On-board control panel
  • For vertical or horizontal effect projection
  • Output and density level control
  • Continuous output
  • 5000 m³/min fog output
  • Integrated high velocity fan
  • 2 x 2500 W heat exchanger
  • 18 min heat-up time
  • 2 x 9.5 liter fluid capacity
  • Different fluid options for different applications
  • Low fluid sensing
  • MSS Trainer Version of Jem Roadie X-Stream
  • UK Manufactured

PHYSICAL

Length: 1140 mm (44.9 in.)

Width: 645 mm (25.4 in.)

Height: 655 mm (25.8 in.)

Dry weight: 167.0 kg (368.2 lbs.)

ELECTRICAL

AC power: 208 V 60 Hz / 220 - 240 V 50 Hz

Main fuse (208-240 V power): Onboard 25 A Breaker

TYPICAL POWER AND CURRENT

220 V, 50 Hz: 4327 W, 19.66 A

230 V, 50 Hz: 4729 W, 20.56 A

240 V, 50 Hz: 5150 W, 22.4 A

Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
